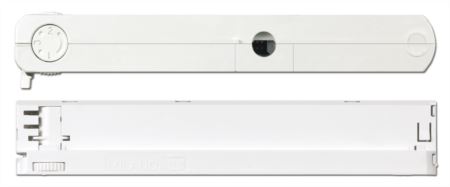

MILANOinTRACK 31/325-700 BLL PIR Wh

135053

135053
€ 141,63
price VAT included

-
+

Features

Rated Voltage
220...240 V
Constant Current
Current
325 mA
220-240 V = Output power
14 W
Current
350 mA
220-240 V = Output power
15,5 W
Current
375 mA
220-240 V = Output power
16,5 W
Current
400 mA
220-240 V = Output power
17,5 W
Current
425 mA
220-240 V = Output power
18,5 W
Current
450 mA
220-240 V = Output power
19,5 W
Current
475 mA
220-240 V = Output power
21 W
Current
500 mA
220-240 V = Output power
22 W
Current
525 mA
220-240 V = Output power
23 W
Current
550 mA
220-240 V = Output power
24 W
Current
575 mA
220-240 V = Output power
25 W
Current
600 mA
220-240 V = Output power
26,5 W
Current
625 mA
220-240 V = Output power
27,5 W
Current
650 mA
220-240 V = Output power
28,5 W
Current
675 mA
220-240 V = Output power
29,5 W
Current
700 mA
220-240 V = Output power
31 W
Dimming:
WIRELESS BLL - Blue Light Link
PIR for BLL HEAT-MAPS
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV < />
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim-to-Warm
Approvals:
ENEC
CCC
RCM
CE
EAC
Plastic case:
TRACK ADAPTOR MAINS VOLTAGE
Size:
228 x 43 x 32 mm
last update:
6/10/2024
Output voltage (min/max)
325 mA
20...44
350 mA
20...44
375 mA
20...44
400 mA
20...44
425 mA
20...44
450 mA
20...44
475 mA
20...44
500 mA
20...44
525 mA
20...44
550 mA
20...44
575 mA
20...44
600 mA
20...44
625 mA
20...44
650 mA
20...44
675 mA
20...44
700 mA
20...44
